INLET BRENCH 3 WAY

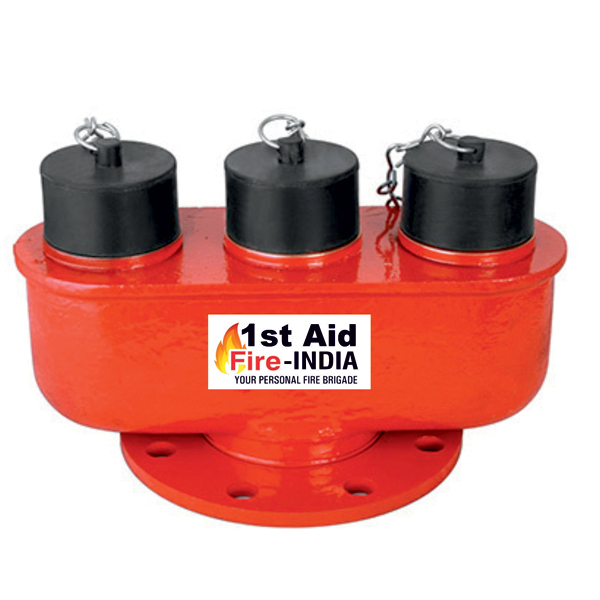

3-Way Inlet Branch (Breeching Inlet Unit)

The 3-Way Inlet Branch is a vital fire-fighting system component designed to allow the fire brigade to pump water into a building’s dry riser system. With three inlet connections, this unit enables simultaneous attachment of multiple hoses, ensuring faster and more efficient water delivery during fire emergencies.

Key Features:

• Design: 3-way inlet configuration for enhanced water input capacity

• Material: Heavy-duty Gun Metal / Cast Iron / Stainless Steel (as per specification)

• Inlet Size: 3 x 2.5” instantaneous male inlets, complete with dust caps and chains

• Outlet Size: 1 x 4” / 6” flanged outlet or threaded connection

• Working Pressure: Rated for operating pressures up to [insert bar/PSI]

• Finish: Corrosion-resistant coating; available in red epoxy or natural metal finish

• Installation: Wall-mountable, typically housed in an inlet breeching cabinet

• Compliance: Conforms to BS 5041 Part 3 / NFPA / Local Fire Codes

Applications:

• High-rise buildings

• Industrial complexes

• Airports and hospitals

• Warehouses and commercial structures
